APS 620 - Palletizer
APS 620 is an ultra-compact palletizer, suitable for low speed production plants, that stand out for its easy installation, management and maintenance.

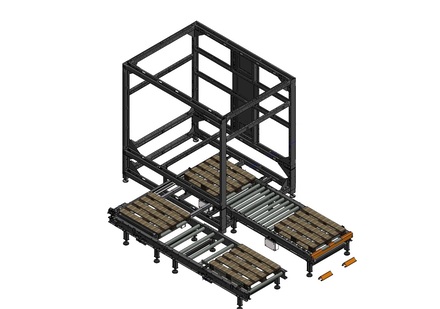

The core of this semi-automatic palletizing system is composed of the structure in which the three Cartesian axis system, performing the pallet formation, is positioned. It is added to the infeed conveyor, the product picking head, the pallet feeding line and the machine guards.
At the palletizer infeed, the product arrives at the product feeding conveyor and is cadenced by a rubber conveyor. Later, it is brought into the picking position by a distancing conveyor, where the gripping head picks the pack, individually or grouped, and places it on the pallet fed by specific roller conveyors. The cyclic repetition of this operation enables to form several palletizing layers. The pallet feeding is performed by motorized rollers; once the pallet has been completed, the system brings it to the unloading area and, at the same time, it places a new empty pallet in the formation area. The full pallet is moved to the unloading area and, at the same time, at the infeed, in the formation area, a palletizing feeding system positions a new empty pallet, so that a new palletizing cycle can start.
The APS 620 works 800x1200 and 1000x1200 mm europallets (other formats are available upon request).
All operations are controlled by a user-friendly automation and control system of the machine, ensured by an extremely intuitive graphic interface, a touchscreen display and diagnostic functions and technical support in real time on POSYC®.
| APS 620 | |
|---|---|
| Speed (PPM) | 20 |
Compact and ergonomic structure
The compact and ergonomic structure ensures great space saving inside the bottling line and allows the operator to easily and safely carry out all the activities related to the use, cleaning and maintenance of the plant.Pick & place system
The electric panel represents a distinct module that is not unwired during transport and therefore can be installed immediately at the customer’s plant. This results in a great simplification of the machine configuration.Operational flexibility
The use of innovative, smart and customized technical solutions ensures great advantages in terms of operational flexibility and economic competitiveness of the processes. In particular, SMI palletizers from the APS series enable to create several palletizing patterns according to the specific requirements of the customer and offer wide customization possibilities in order to adapt to the changeover, product change and/or plant layout requirements.Quick and precise movements
The machine axes are controlled by brushless motors that ensure highly dynamic, harmonic and precise movements.Low operating costs and reduced maintenance
The TCO (Total Cost of Ownership) is optimized thanks to low operating and maintenance costs.Eco-friendliness
SMI palletizers from the APS series are an eco-friendly solution, thanks to the use of ICOS motors with built-in servo-driver, able to simplify the machine wiring and ensure greater energy efficiency, low noise level and reduced component wear.
Product feeding conveyor
The product arriving at the palletizer is cadenced by the rubber conveyor. The distancing conveyor moves the product to the picking position (depending on the product size and palletizing pattern required, even more products can be accumulated on the picking conveyor). If the palletizing pattern needs to pick more packs, the latter are brought by a cylinder into an additional station and then picked by the gripping head.
Pallet feeding system

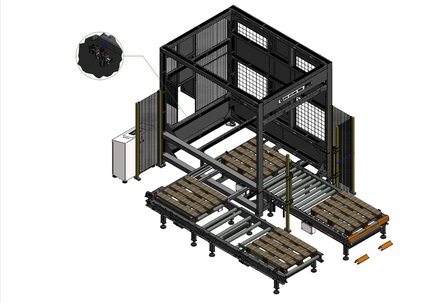

The empty pallet, after having been loaded in the position external to the nets, is automatically brought into the pallet formation area. The pallet 90° transfer is ensured by a pneumatic device (Devio), that, moves the pallet to the desired position thanks to a cylinder. The full pallet is moved to the roller conveyor that is positioned outside the perimeter guards, where it is picked. This solution ensures fast pallet changeover times and minimizes the machine downtime.

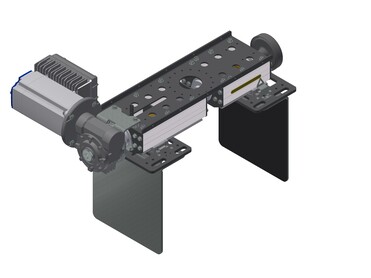

Product gripping head
The system is equipped with a motorized side gripping head, composed of two rubber side paddles (one fixed and one motorized), that ensures an optimal grip for every type of product to be palletized. As an alternative, for metal products, it is possible to use a magnetic gripping head. Furthermore, the gripping head is equipped with a motor for the product rotation, so that the pack is placed on the layer in the position needed by the palletizing pattern.
Machine guards
Net guards installed in the machine, except for the pallet loading/unloading area, in which it is instead fixed to the floor. There are a discharge for the passage of the pallet to the empty pallet loading area and light curtains with muting device for the full pallet outfeed area.

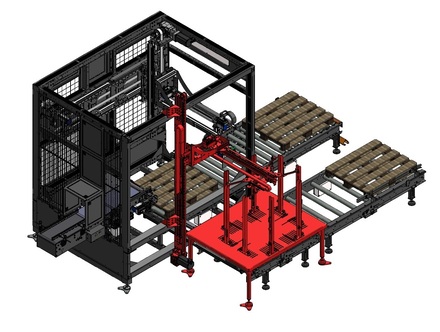

Pad-inserting device (optional)
The pad-inserting module is a pad feeding system adjustable according to the different size of the interlayer pad, that can be matched to the structure of the palletizer. The suction-cup gripping system with 4 adjustable points ensures the accurate lifting of any kind of interlayer pad. The loading of the pads into the magazine is performed manually by the machine operator.

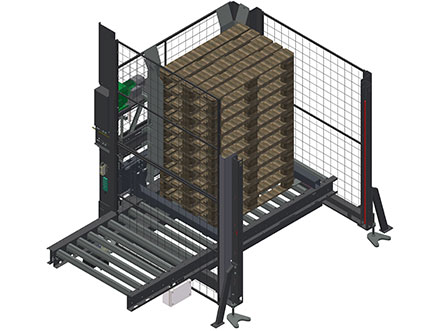

Empty pallets magazine (optional)
Empty pallet magazine with integrated roller conveyor is available as an optional device. The maximum storage capacity of this device is about 300 kg and the total maximum height 1800 mm (12 1000x1200 mm pallets).Images are for illustrative purposes and data are not binding, as they have to be confirmed by SMI according to the machine user's production conditions and technical specifications.
